SPN 3609: Aftertreatment 1 Diesel Particulate Filter Soot Load Percent

Fault Code SPN 3609: Diesel Oxidation Catalyst (DOC) Inlet Pressure Sensor Circuit

Urgency and Driving Considerations

If you encounter Fault Code SPN 3609, it indicates an issue with the Diesel Oxidation Catalyst (DOC) inlet pressure sensor circuit. While this fault does not require immediately stopping the vehicle, it's recommended to have it diagnosed and repaired as soon as possible to prevent potential damage to the aftertreatment system. Driving can continue, but performance and fuel efficiency may be reduced. If the check engine light is flashing, limit driving and visit a dealer or qualified repair shop promptly.

Code Specifics and Applicability

SPN 3609 is a generic J1939 diagnostic trouble code that applies to various diesel engines, including:

• Detroit DD13, DD15, DD16 engines (2007-2016 model years)
• Cummins ISX, ISM, ISL engines
• Caterpillar C13, C15, C18 engines
• Volvo D11, D13, D16 engines
• Mack MP7, MP8, MP10 engines

The exact fault code format may vary slightly by manufacturer, such as "SPN 3609 FMI 4" for Detroit Diesel or "SPN 3609 FMI 2" for Caterpillar.

Components and Function

The DOC inlet pressure sensor, located at the inlet of the Diesel Oxidation Catalyst, measures the exhaust pressure entering the DOC. The DOC is a key component of the aftertreatment system that oxidizes unburned hydrocarbons, carbon monoxide, and some particulate matter in the exhaust stream. Proper monitoring of DOC inlet pressure is crucial for optimal performance and emissions control.

The pressure sensor is typically a 3-wire sensor with a 5V reference voltage, ground, and signal output. It sends a pressure signal to the Engine Control Module (ECM) for processing.

Common Causes

Common causes of SPN 3609 include:

1. Faulty DOC inlet pressure sensor
2. Damaged or corroded wiring and connectors between the sensor and ECM
3. Exhaust leaks before the DOC
4. Plugged or restricted DOC
5. Malfunctioning ECM

Diagnostic Steps

Follow these steps to diagnose SPN 3609:

1. Inspect wiring and connectors between the DOC inlet pressure sensor and ECM for damage, corrosion, or loose connections. Repair as needed.
2. Key on, engine off (KOEO), check for 5V reference voltage and ground at the sensor. If missing, trace back to the ECM.
3. With the sensor disconnected, check resistance across the sensor pins. Compare to manufacturer specifications, typically 10-20 kΩ. Replace sensor if out of range.
4. Perform an active test on the sensor using a diagnostic tool. Monitor voltage output while applying vacuum/pressure to the sensor. It should sweep from 0.5V to 4.5V. Replace if response is erratic or out of range.
5. Visually inspect exhaust system before the DOC for leaks. Repair any leaks found.
6. Check for plugged or restricted DOC. Remove and clean or replace as needed.

Repair and Prevention

To fix SPN 3609, replace the faulty DOC inlet pressure sensor, repair damaged wiring/connectors, and address any exhaust leaks or restrictions. Proper preventive maintenance, including regular inspections of the aftertreatment system and timely replacement of failed components, can help avoid recurring issues.

Related Fault Codes

Other fault codes commonly seen with SPN 3609 include:

• SPN 3610 – DOC outlet pressure sensor circuit
• SPN 3719 – Aftertreatment 1 outlet NOx sensor
• SPN 3226 – Aftertreatment 1 outlet temperature sensor
• SPN 3251 – Aftertreatment 1 Diesel Exhaust Fluid (DEF) dosing valve

By understanding SPN 3609, its causes, and diagnostic steps, engineers and mechanics can efficiently troubleshoot and repair issues related to the DOC inlet pressure sensor circuit. Proper maintenance and prompt attention to fault codes help ensure optimal engine performance and emissions compliance.

FAQ: Fault Code SPN 3609

What is Fault Code SPN 3609?

Fault Code SPN 3609 indicates an issue with the Diesel Oxidation Catalyst (DOC) inlet pressure sensor circuit. It is a generic J1939 diagnostic trouble code that applies to various diesel engines.

What are the symptoms of SPN 3609?

Common symptoms include:

• Illuminated check engine light
• Reduced engine performance
• Decreased fuel efficiency
• Potential engine derate or limp mode

Is it safe to drive with SPN 3609?

While SPN 3609 does not require immediately stopping the vehicle, it’s recommended to have it diagnosed and repaired promptly to prevent potential damage to the aftertreatment system. Driving can continue, but performance may be reduced. If the check engine light is flashing, limit driving and visit a repair shop as soon as possible.

What components are involved with SPN 3609?

The main components include:

• DOC inlet pressure sensor
• Wiring and connectors between the sensor and Engine Control Module (ECM)
• Diesel Oxidation Catalyst (DOC)
• Exhaust system before the DOC

What are common causes of SPN 3609?

Common causes include:

1. Faulty DOC inlet pressure sensor
2. Damaged wiring or connectors
3. Exhaust leaks before the DOC
4. Plugged or restricted DOC
5. Malfunctioning ECM

What are the diagnostic steps for SPN 3609?

Key diagnostic steps are:

1. Inspect wiring and connectors for damage or loose connections
2. Check for reference voltage and ground at the sensor
3. Measure sensor resistance and compare to specifications
4. Perform an active test on the sensor and monitor voltage output
5. Inspect exhaust system for leaks
6. Check for a plugged or restricted DOC

How is SPN 3609 repaired?

To fix SPN 3609, the faulty DOC inlet pressure sensor is replaced, damaged wiring/connectors are repaired, and any exhaust leaks or restrictions are addressed. Proper preventive maintenance can help avoid recurring issues.

What are typical repair costs for SPN 3609?

Repair costs can range from $200-$400 for the pressure sensor, $100-$200 for wiring repairs, $100-$500 for exhaust leak repairs, and $1500-$3000 for DOC replacement if plugged.

What other fault codes are commonly seen with SPN 3609?

Related fault codes include:

• SPN 3610 (DOC outlet pressure sensor)
• SPN 3719 (Aftertreatment outlet NOx sensor)
• SPN 3226 (Aftertreatment outlet temperature sensor)
• SPN 3251 (Aftertreatment DEF dosing valve)

Can SPN 3609 cause the engine to shut down?

SPN 3609 itself typically will not cause an immediate engine shutdown. However, if left unaddressed, it can lead to more severe issues with the aftertreatment system that could potentially force an engine derate or shutdown to prevent damage.

How often should the DOC inlet pressure sensor be replaced?

There is no specific replacement interval for the DOC inlet pressure sensor. It should be replaced if it fails diagnostics when troubleshooting SPN 3609 or if it is physically damaged. As a preventive measure, inspecting the sensor and its wiring/connectors at regular service intervals is advised.

Can a malfunctioning DOC cause SPN 3609?

Yes, a plugged or restricted Diesel Oxidation Catalyst can cause increased backpressure, leading to SPN 3609. The DOC should be inspected if the fault code persists after addressing potential sensor and wiring issues.

What is the location of the DOC inlet pressure sensor?

The DOC inlet pressure sensor is typically located at the inlet of the Diesel Oxidation Catalyst, directly mounted on the exhaust system. Its exact position may vary depending on the specific engine and aftertreatment system configuration.

Can SPN 3609 affect emissions levels?

Yes, SPN 3609 indicates an issue with monitoring the pressure entering the DOC, which is a critical component for reducing emissions. If the DOC is not functioning optimally due to restricted flow or other issues, emissions levels can be adversely affected.

Is special equipment needed to diagnose SPN 3609?

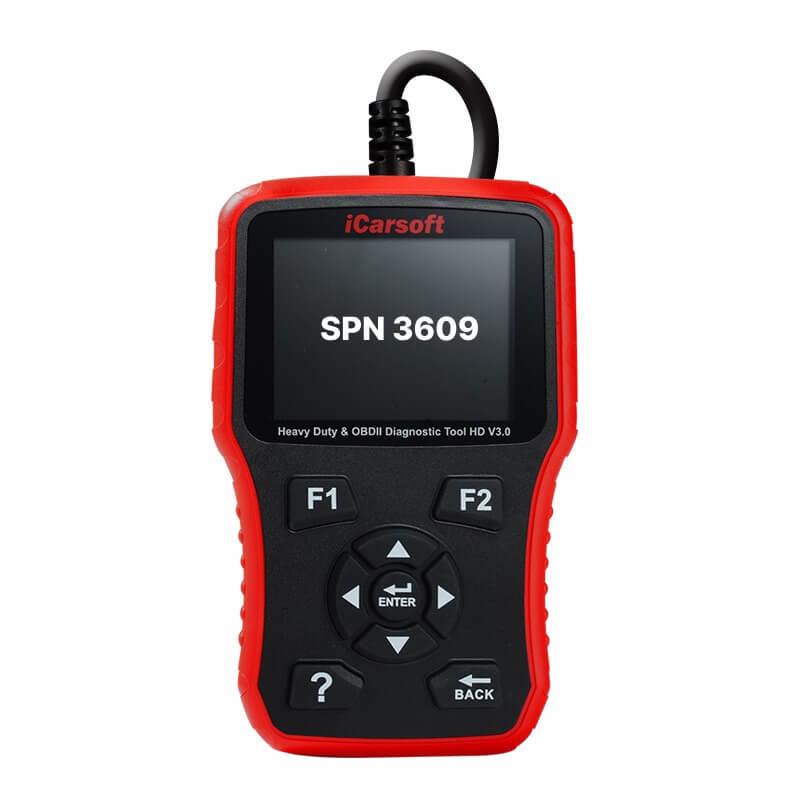

Diagnosing SPN 3609 requires a diagnostic scan tool capable of reading J1939 fault codes and performing active tests on sensors. A digital multimeter is also necessary for checking wiring, voltage, and resistance. Specialized equipment for measuring exhaust backpressure might be needed in some cases.

Can low-quality fuel contribute to SPN 3609?

Low-quality fuel can indirectly contribute to SPN 3609 by causing accelerated contamination and plugging of the Diesel Oxidation Catalyst. This restriction can lead to increased backpressure and potential issues with the DOC inlet pressure sensor. Using high-quality, clean diesel fuel is always recommended.

How does the DOC inlet pressure sensor work?

The DOC inlet pressure sensor is typically a 3-wire pressure transducer. It receives a 5V reference voltage and ground from the ECM and sends a variable voltage signal back proportional to the exhaust pressure entering the DOC. The ECM uses this signal to monitor and control the aftertreatment system.

Can SPN 3609 be caused by other components besides the sensor?

Yes, while a faulty sensor is a common cause, SPN 3609 can also be triggered by issues such as damaged wiring, exhaust leaks, a plugged DOC, or even a malfunctioning ECM. Thorough diagnostics are necessary to pinpoint the root cause.

What is the difference between SPN 3609 and SPN 3610?

SPN 3609 relates to the DOC inlet pressure sensor, while SPN 3610 pertains to the DOC outlet pressure sensor. Both sensors work together to monitor the pressure drop across the Diesel Oxidation Catalyst, but they are separate components with distinct fault codes.

How can I prevent SPN 3609 from reoccurring?

To help prevent SPN 3609 from reoccurring:

• Address the root cause thoroughly, not just the symptoms
• Perform regular inspections of the aftertreatment system sensors and wiring
• Use high-quality diesel fuel and avoid contamination
• Follow the engine manufacturer’s recommended maintenance schedule
• Promptly address any exhaust leaks or restrictions

By understanding SPN 3609, its causes, and diagnostic steps, technicians can efficiently troubleshoot and repair issues related to the DOC inlet pressure sensor circuit. Proper maintenance and attention to fault codes help ensure optimal engine performance and emissions compliance.
