SPN 3226: Aftertreatment 1 Outlet NOx

Understanding Fault Code SPN 3226: A Comprehensive Guide for Engineers and Mechanics

SPN 3226 is a fault code related to the Selective Catalytic Reduction (SCR) Outlet NOx Sensor in diesel engines equipped with after treatment systems. This article provides a detailed analysis of the code, its implications, and resolution strategies.

Urgency Assessment

When SPN 3226 appears, immediate action is recommended, but the vehicle can typically continue operating with caution. The Engine Control Module (ECM) usually illuminates the amber CHECK ENGINE lamp and/or the Malfunction Indicator Lamp (MIL) when this fault is detected. While not requiring an immediate stop, addressing the issue promptly is crucial to prevent potential engine derating or performance issues.

Code Details

SPN 3226 specifically relates to the SCR Outlet NOx Sensor Circuit. It can be associated with various Failure Mode Identifiers (FMI):

• FMI 2: Data erratic, intermittent, or incorrect
• FMI 3: Voltage above normal or shorted high
• FMI 4: Voltage below normal or shorted low
• FMI 9: Abnormal update rate
• FMI 10: Abnormal rate of change
• FMI 20: Data drifted low

The code indicates an issue with the NOx sensor reading or its circuit, which is critical for monitoring the efficiency of the SCR system.

Components Involved

The primary component associated with SPN 3226 is the SCR Outlet NOx Sensor. This sensor is mounted in the exhaust pipe after the aftertreatment system and is connected to the Engine Control Module (ECM). Its function is to measure the levels of nitrogen oxides (NOx) in the exhaust after the SCR system, ensuring the proper operation of the emissions control system.

Common Causes

1. Faulty NOx sensor
2. Wiring issues (short circuits, open circuits)
3. Connector problems (corrosion, loose connections)
4. ECM software issues
5. Exhaust leaks affecting sensor readings

Environmental factors such as extreme temperatures or exposure to contaminants can contribute to sensor failure or wiring degradation.

Diagnostic Procedure

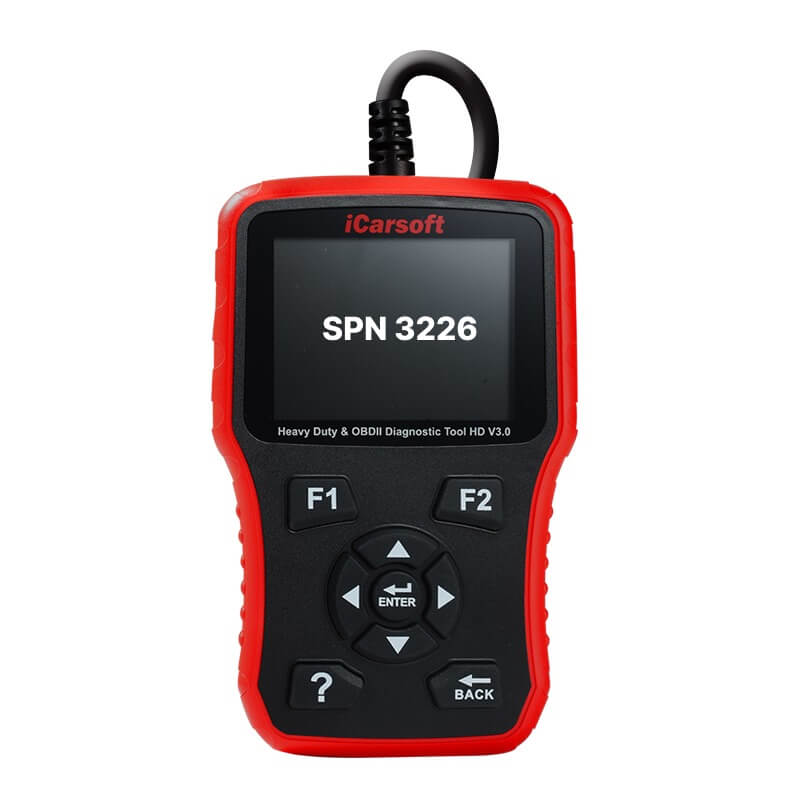

1. Connect a diagnostic tool and retrieve all active and stored fault codes.
2. Inspect the wiring harness and connectors for visible damage or corrosion.
3. Check for exhaust leaks around the sensor mounting area.
4. Measure the voltage and resistance of the NOx sensor circuit.
5. Perform a visual inspection of the NOx sensor for physical damage.

Diagnostic Tree:

1. Is there visible damage to wiring or connectors?
   • Yes: Repair or replace damaged components
   • No: Proceed to step 2
2. Are there any exhaust leaks detected?
   • Yes: Repair exhaust leaks
   • No: Proceed to step 3
3. Does the NOx sensor circuit show correct voltage and resistance?
   • Yes: Consider ECM software update or NOx sensor replacement
   • No: Repair or replace wiring as necessary

Solutions

1. Replace the faulty NOx sensor if diagnosed as defective.
2. Repair or replace damaged wiring or connectors.
3. Update ECM software if a known issue exists.
4. Repair any exhaust leaks affecting sensor readings.

Prevention

Regular maintenance practices can help prevent SPN 3226:

• Inspect wiring harnesses and connectors during routine service.
• Keep the exhaust system in good repair to prevent leaks.
• Ensure proper DEF quality and levels are maintained.

Cost Analysis

Labor costs can vary significantly based on location and complexity of the repair.

DIY Repair Guide

For skilled mechanics:

1. Ensure the engine is cool before beginning work.
2. Locate the SCR Outlet NOx Sensor in the exhaust system.
3. Disconnect the sensor's electrical connector.
4. Unscrew the sensor using a specialized socket (typically 22mm).
5. Install the new sensor, ensuring proper torque (typically 40-50 Nm).
6. Reconnect the electrical connector.
7. Clear fault codes and perform a test drive.

Safety Precaution: Always wear appropriate personal protective equipment and follow proper safety procedures when working on exhaust systems.

Related Issues

SPN 3226 may coincide with other SCR system faults, including:

• SPN 3216 (SCR Inlet NOx Sensor)
• SPN 1639 (Fan Speed)
• SPN 3251 (Aftertreatment 1 Outlet Gas NOx Sensor Heater)

These codes often indicate broader issues within the aftertreatment system and should be diagnosed comprehensively.

By understanding the intricacies of SPN 3226, engineers and mechanics can effectively diagnose and resolve issues related to the SCR Outlet NOx Sensor, ensuring optimal performance and emissions control in diesel engines.

FAQ

What does fault code SPN 3226 indicate?

SPN 3226 indicates an issue with the Selective Catalytic Reduction (SCR) Outlet NOx Sensor. This sensor measures nitrogen oxide levels in the exhaust after the SCR system.

Is it safe to continue driving with SPN 3226 active?

While not requiring an immediate stop, it’s recommended to address the issue promptly. Continued operation may lead to engine derating or performance issues.

What are the common FMI codes associated with SPN 3226?

Common FMI codes include 2 (data erratic), 3 (voltage high), 4 (voltage low), 9 (abnormal update rate), and 20 (data drifted low).

What components are involved with SPN 3226?

The primary component is the SCR Outlet NOx Sensor, along with its wiring, connectors, and the Engine Control Module (ECM).

What are common causes of SPN 3226?

Common causes include faulty NOx sensors, wiring issues, connector problems, ECM software issues, and exhaust leaks.

How do I diagnose SPN 3226?

Start by retrieving all fault codes, inspect wiring and connectors, check for exhaust leaks, and measure the NOx sensor circuit’s voltage and resistance.

Can I replace the NOx sensor myself?

Yes, if you’re a skilled mechanic. Ensure the engine is cool, locate the sensor, disconnect it, unscrew it (typically using a 22mm socket), and install the new sensor with proper torque.

What’s the typical cost to replace a NOx sensor?

The sensor itself typically costs between $250-$350 USD (€210-€295 EUR), with additional labor costs varying by location.

Are there any preventive measures for SPN 3226?

Regular inspection of wiring harnesses and connectors, maintaining the exhaust system, and ensuring proper DEF quality and levels can help prevent this issue.

What other fault codes are often associated with SPN 3226?

SPN 3216 (SCR Inlet NOx Sensor) , SPN 1639 (Fan Speed), and SPN 3251(Aftertreatment 1 Outlet Gas NOx Sensor Heater) are often related.

How does the SCR Outlet NOx Sensor function?

This sensor monitors the levels of nitrogen oxides in the exhaust after the SCR system, ensuring proper operation of the emissions control system.

What happens if I ignore SPN 3226?

Ignoring this code may lead to decreased engine performance, increased fuel consumption, and potential damage to the aftertreatment system.

Can environmental factors contribute to SPN 3226?

Yes, extreme temperatures or exposure to contaminants can contribute to sensor failure or wiring degradation.

How often should the NOx sensor be replaced?

There’s no set interval for replacement. Sensors are typically replaced when they fail or as part of diagnosing SPN 3226.

Can a software update resolve SPN 3226?

In some cases, an ECM software update may resolve the issue, especially if it’s a known problem for that particular engine model.

What tools are needed to diagnose SPN 3226?

You’ll need a diagnostic tool to retrieve fault codes, a multimeter for electrical testing, and potentially specialized sockets for sensor removal.

How long does it typically take to replace a NOx sensor?

For an experienced mechanic, replacement usually takes 30-60 minutes, depending on the vehicle’s configuration and sensor accessibility.

Can a faulty DEF system cause SPN 3226?

While not directly causing SPN 3226, a faulty DEF system can lead to increased NOx emissions, potentially affecting sensor readings.

Are aftermarket NOx sensors reliable for replacing OEM parts?

Quality aftermarket sensors can be reliable, but using OEM parts is often recommended to ensure proper fit and function.

How does SPN 3226 affect vehicle emissions?

This fault can indicate that the vehicle’s emissions control system isn’t functioning properly, potentially leading to increased NOx emissions.
