P20E8 – SCR NOx Catalyst Efficiency Below Threshold

The OBD-II diagnostic trouble code P20E8 indicates a problem with the reductant pressure in the vehicle's urea injection system, specifically that the pressure is too low for normal operation. This article provides an in-depth analysis of the P20E8 code, its implications, and how to diagnose and repair the issue.

Urgency Assessment

When the P20E8 code is triggered, it's generally safe to continue driving for a short period, but immediate attention is recommended. The code indicates a problem with the vehicle's emissions control system, which could lead to increased emissions and potential damage to the catalytic converter if left unaddressed. In some cases, the vehicle may enter a reduced power mode or "limp mode" to protect the engine and emissions system.

Detailed Code Information

P20E8 specifically refers to a condition where the Powertrain Control Module (PCM) detects insufficient pressure in the reductant injection system between the injection pump and the injection nozzle on Selective Catalytic Reduction (SCR) catalytic converters. This system is crucial for reducing nitrogen oxide (NOx) emissions in diesel engines.

The reductant, typically Diesel Exhaust Fluid (DEF), is injected into the exhaust stream to convert harmful NOx into harmless nitrogen and water. When the reductant pressure is too low, the system cannot effectively reduce emissions, potentially causing the vehicle to fail emissions tests and operate less efficiently.

Code Applicability

P20E8 is a generic powertrain code, meaning it applies to various vehicle makes and models equipped with OBD-II systems and SCR technology. However, the specific diagnostic and repair procedures may vary by manufacturer. This code is commonly found in diesel-powered vehicles from manufacturers such as Audi, Volkswagen, Peugeot, and other European brands.

Components Involved

The main components associated with the P20E8 code include:

1. Reductant (DEF) tank
2. Reductant pump
3. Reductant pressure sensor
4. Reductant injector
5. Reductant pressure lines
6. Reductant heater element
7. SCR catalytic converter
8. Engine Control Module (ECM) or Powertrain Control Module (PCM)

The reductant pump pressurizes the DEF and sends it through the pressure lines to the injector. The pressure sensor monitors the system pressure, while the injector sprays the DEF into the exhaust stream. The heater element prevents the DEF from freezing in cold temperatures.

Common Causes

Several factors can trigger the P20E8 code:

1. Low reductant (DEF) fluid level
2. Contaminated or crystallized DEF
3. Faulty reductant pump
4. Malfunctioning reductant injector
5. Leaks in the pressure feed line or injection nozzle
6. Defective reductant pressure sensor
7. Malfunctioning reductant heater element
8. Wiring issues (damaged, corroded, or disconnected)
9. Programming errors in the reductant injection system's control module

Step-by-Step Diagnostic Procedure

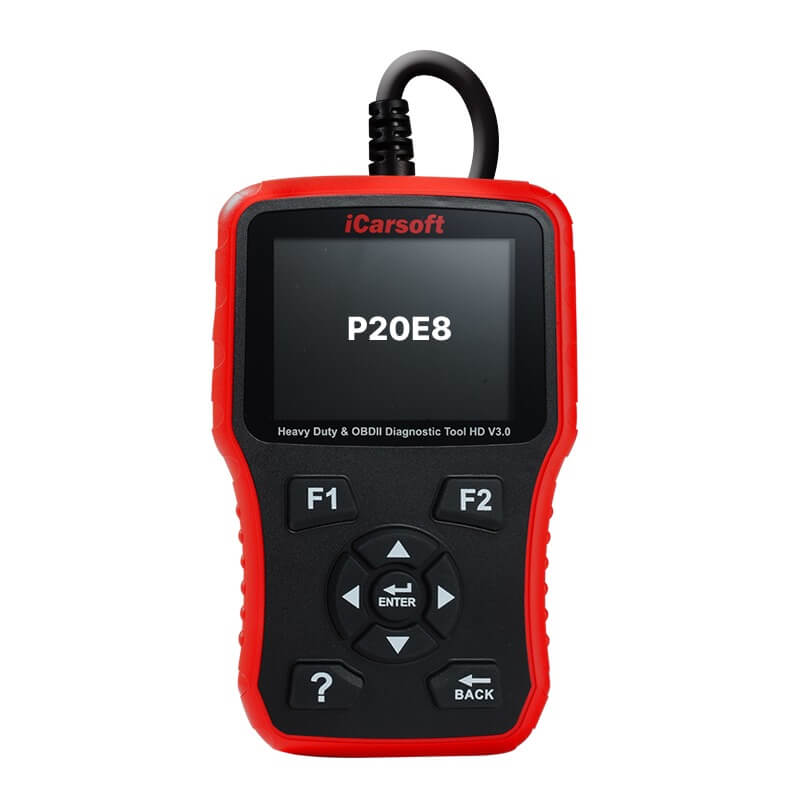

1. Connect an OBD-II scanner and read all stored codes and freeze frame data.
2. Check the DEF fluid level and quality. The fluid should be clear and free of contaminants.
3. Inspect the DEF tank, lines, and connections for leaks or damage.
4. Check the reductant pump for proper operation. Measure the pump's current draw and compare it to specifications.
5. Inspect the wiring harness and connectors for damage, corrosion, or loose connections.
6. Test the reductant pressure sensor. Normal operating pressure is typically between 4.5 and 9 bar (65-130 psi).
7. Examine the reductant injector for clogs or damage.
8. Verify the operation of the reductant heater element, especially in cold climates.
9. Use a scan tool to command the reductant injection system and observe system response.
10. If no issues are found with components, consider updating the ECM/PCM software.

Repair Solutions

Depending on the diagnostic results, repairs may include:

1. Refilling or replacing contaminated DEF
2. Replacing the reductant pump
3. Repairing or replacing damaged wiring or connectors
4. Replacing the reductant pressure sensor
5. Cleaning or replacing the reductant injector
6. Repairing leaks in the pressure lines or connections
7. Replacing the reductant heater element
8. Updating ECM/PCM software

Preventive Measures

To avoid future P20E8 codes:

1. Regularly check and maintain proper DEF levels
2. Use high-quality DEF and store it properly to prevent contamination
3. Follow the manufacturer's recommended maintenance schedule for the SCR system
4. Address any DEF-related warning lights or messages promptly

Repair Costs

Repair costs can vary significantly depending on the root cause and the vehicle make/model. Estimated ranges:

• Diagnosis: $100-$200 (€85-€170)
• DEF refill: $20-$50 (€17-€42)
• Reductant pump replacement: $500-$1000 (€425-€850)
• Reductant injector replacement: $300-$600 (€255-€510)
• Reductant pressure sensor replacement: $150-$300 (€127-€255)
• ECM/PCM software update: $100-$200 (€85-€170)

DIY Repair Guide

For skilled mechanics attempting DIY repairs:

1. Safety first: Wear protective gear and work in a well-ventilated area.
2. Tools needed: OBD-II scanner, multimeter, basic hand tools, and manufacturer-specific diagnostic equipment if available.
3. Refer to the vehicle's service manual for specific procedures and torque specifications.
4. When replacing components, ensure proper routing of wiring and hoses.
5. After repairs, clear all codes and perform a road test to confirm the fix.

Related Issues

Problems often associated with P20E8 include:

1. Reduced engine power
2. Poor fuel economy
3. Increased exhaust emissions
4. Difficulty starting the engine in cold weather

Associated Fault Codes

Codes frequently appearing alongside P20E8:

• P20E9 (Reductant Pressure Too High)
• P20EE (SCR NOx Catalyst Efficiency Below Threshold)
• P203F (Reductant Level Too Low)
• P2002 (Diesel Particulate Filter Efficiency Below Threshold)

By understanding the complexities of the P20E8 code, automotive professionals can efficiently diagnose and repair SCR system issues, ensuring optimal vehicle performance and emissions control.

Frequently Asked Questions About P20E8

What does the P20E8 code mean?

P20E8 indicates that the Powertrain Control Module (PCM) has detected reductant pressure that is too low for normal operation in the vehicle’s Selective Catalytic Reduction (SCR) system.

Is it safe to drive with the P20E8 code?

While it’s generally safe to drive short distances, it’s recommended to address the issue promptly to prevent potential damage to the emissions system and avoid reduced engine performance.

What are the common symptoms of P20E8?

Common symptoms include an illuminated check engine light, reduced engine power, and in some cases, the vehicle entering a “limp mode” to protect the engine.

What causes the P20E8 code?

Common causes include low Diesel Exhaust Fluid (DEF) levels, faulty reductant pump, clogged or damaged injectors, leaks in the system, or a malfunctioning pressure sensor.

How is P20E8 diagnosed?

Diagnosis typically involves scanning for codes, checking DEF levels and quality, inspecting system components for damage or leaks, and testing the reductant pump and pressure sensor.

Can I clear the P20E8 code myself?

While you can clear the code using an OBD-II scanner, it will likely return if the underlying issue isn’t addressed.

How much does it cost to repair P20E8?

Repair costs can vary widely depending on the cause, ranging from $100 for a DEF refill to over $1000 for major component replacements.

Is P20E8 a serious code?

While not immediately critical, P20E8 should be addressed promptly to maintain proper emissions control and prevent potential engine damage.

Can low-quality DEF cause P20E8?

Yes, contaminated or poor-quality DEF can cause system issues leading to P20E8.

How often should I check my DEF levels to prevent P20E8?

It’s recommended to check DEF levels at every oil change or every 5,000 miles, whichever comes first.

Can extreme temperatures trigger P20E8?

Yes, very cold temperatures can cause DEF to freeze, potentially triggering P20E8. Most vehicles have DEF heating systems to prevent this.

Is P20E8 covered under warranty?

It depends on your vehicle’s warranty terms. Many manufacturers cover emissions-related issues for an extended period.

Can I still pass emissions testing with P20E8?

Most likely not. P20E8 indicates an emissions system issue that would typically cause a vehicle to fail an emissions test.

How long does it take to repair P20E8?

Repair time can range from 30 minutes for a simple DEF refill to several hours for component replacements.

Can I prevent P20E8 from occurring?

Regular maintenance, using high-quality DEF, and addressing any DEF-related warning lights promptly can help prevent P20E8.

Will P20E8 affect my fuel economy?

It may not directly affect fuel economy, but if the vehicle enters a reduced power mode, fuel efficiency could decrease.

Is P20E8 specific to certain vehicle makes or models?

While P20E8 can occur in any vehicle with an SCR system, it’s more common in diesel-powered vehicles, particularly European brands.

Can a software update resolve P20E8?

In some cases, a PCM software update may resolve issues leading to P20E8, but this is not common.

What other codes are often associated with P20E8?

P20E9 (Reductant Pressure Too High), P203F (Reductant Level Too Low), and P20EE (SCR NOx Catalyst Efficiency Below Threshold) are often seen alongside P20E8.

Can I repair P20E8 myself?

While simple fixes like refilling DEF can be done at home, most repairs related to P20E8 require specialized tools and knowledge, making professional repair advisable.
